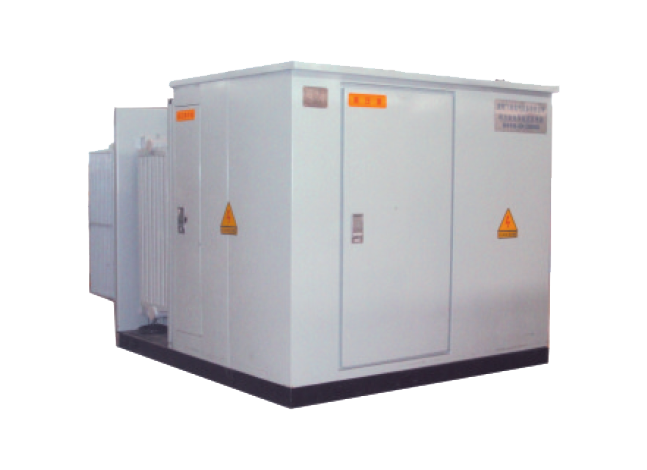

Wind power box transformer
成功應(yīng)用案例 +
Product description：
The production of wind power box in our company is to change the low voltage to high voltage to the power grid. Voltage level 10kV, 35KV. Light volt box change mainly adopts American structure is composed of three parts, the transformer body, low-voltage switchgear and a casing, casing material is divided into: stainless steel plate, common plate, galvanized plate material. The transformer body is composed of a high voltage load switch, high voltage fuse plug, power supply scheme for oil immersed transformer. There are a number of prominent features:
1) the structure design of chip heat sink.
2) switch cabinet level 0K.
3) shell with high strength, strong ability to cover rain, rain proof lock anti-theft padlock.
4) ontology can be used in the design of common box or sub box design.
5) standard colors for the army green and sea grey.
6) high voltage using air insulated into the line.
7) stable and safe operation.
8) the product has a large number of market performance, running a number of more than 5000 units.
technical parameter：
|
Serial number |
Product technical parameters |
Wind power box transformer |
|
1 |
Rated voltage |
12KV,35KV |
|
2 |
Rated capacity |
3150KVAfollowing |
|
3 |
Shell level |
0Klevel |
|
4 |
Low voltage measurement |
Anti theft electric function |
|
5 |
Gel |
Ninglu design |
|
6 |
Low temperature environment (limit temperature) |
-35℃ |
|
7 |
Contamination level |
Dust and maintenance free type |
